Adding a Slab Image to a Quote Drawing


To help customers visualize a countertop, include a photograph of a specific slab in a CounterGo drawing.

Before you begin

Save digital photographs of slabs on your computer or in a location/shared folder accessible from the Internet (e.g., Dropbox, OneDrive, etc.)

  1. Draw desired countertops, using Steps 1-4.
  2. On Step 5, click grey area representing the slabs and choose Slab Properties... from menu.
  3. Click the Browse... button to choose a photograph of a slab and click Open.
  4. The slab image will appear in the Edit Slab dialog box. Use mouse to select the portion of the photograph that you want to appear in slab layout. Click OK.

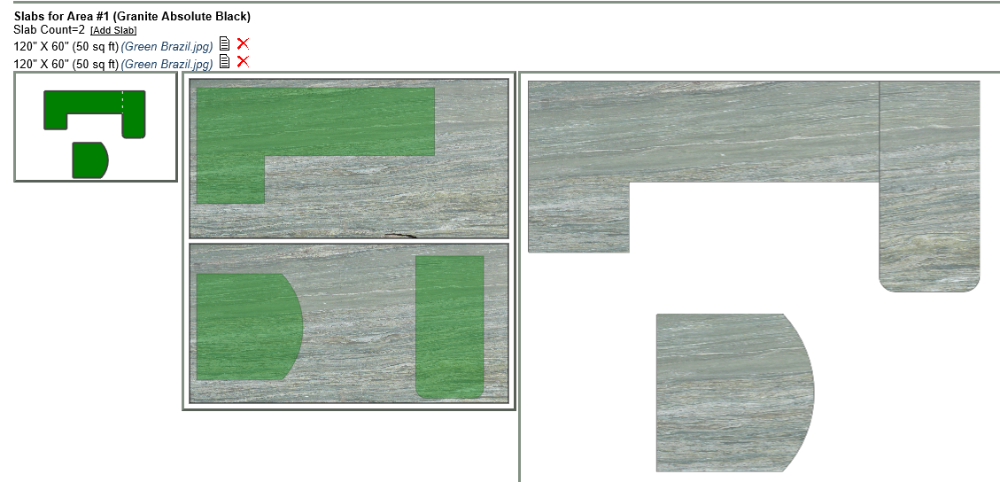

  5. Adjust the layout of your countertops to get a sense of how the seams work with the movement on the slabs.
  6. Video
